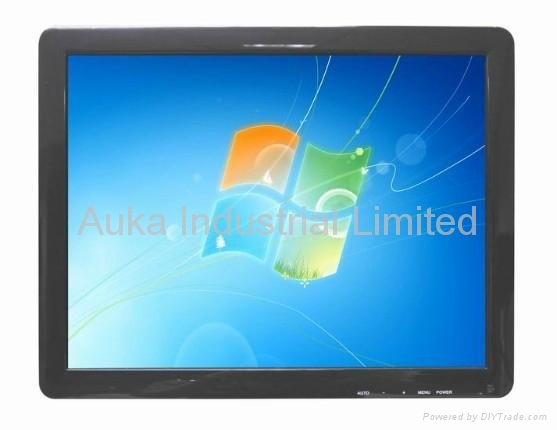

19 Inch TFT LCD CCTV Monitor
|
|
| Model No.︰ | CCTV1901 |
| Country of Origin︰ | China |
| Minimum Order︰ | 1 pc |
|
|
|
|
|
|
|
Specification model: CCTV1901
PANEL SIZE: 19 Inch
ACTIVE DISPLAY AREA: 379mm(W)× 304mm(H)
DISPLAY MODE: 4: 3
LCD TYPE: TFT-LCD
RESOLUTION: 1280× 1024
MAX DISPLAY COLOR: 16.7M
PIXEL PITCH(mm): 0.264(H)× 0.264(V)
BRIGHTNESS(nits): 450CD/M2
CONTRAST RATIO: 1000: 1
VIEW ANGLE: 170° /160°
RESPONSI TIME: 8ms
V-FREQUENCCY: 60Hz
Input and Output
Composite video input and output: 2 (BNC× 2)/1(BNCX1)
Y, Pb, Pr/Y, CB, Cr input: 1 (BNC× 3)
VGA input: 1
RS232 Control mouth input/output: RJ45X2
HDMI: 1
VIDEO
System: PAL/NTSC/SECAM
OSD display
MENU Chinese/English
POWER
Power input DC: 12V/4A
Max in operation ≤ 25W
Standby power loss <3W |
|
|
|
| Payment Terms︰ | T/T,L/C,Western Union |
|
|
