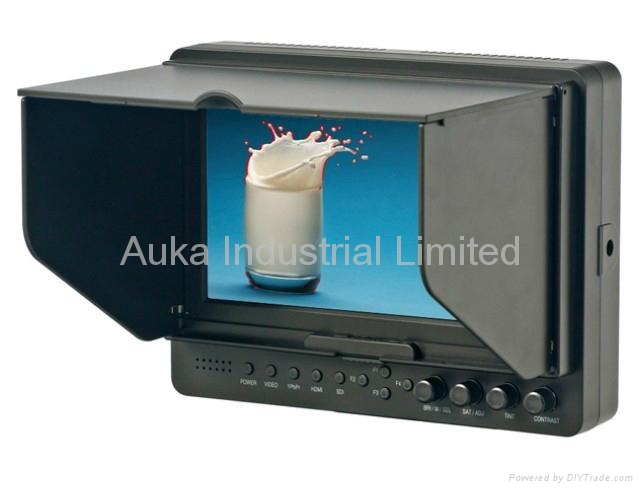

7" On-Camera Monitor & LCD Field Monitor with Advanced Functions for Full HD Camera:
F1-F4, 4 user-definable buttons, default function:
F1: Peaking Filter
F2: False Colors
F3: Exposure
F4: Histogram
Functions:
Peaking Filter, False Colors, Histogram, Exposure, Camera, Center Marker, Pixel-to-Pixel, Color Bar, Screen Marker, Aspect Ratio, Check Field, Underscan/Overscan, Freeze Input, H/V Delay, 4x Zoom, Picture-in-Picture, Image Flip.
Parameters:
Panel Size: 7" TFT LCD (16: 9)
Resolution: 1024× 600, up to 1920× 1080
Brightness: 250CD/m²
Contrast: 800: 1
Viewing Angle: 160° / 150° (H/V)
Input Voltage: DC 6.5-24V (XLR DC Connection)

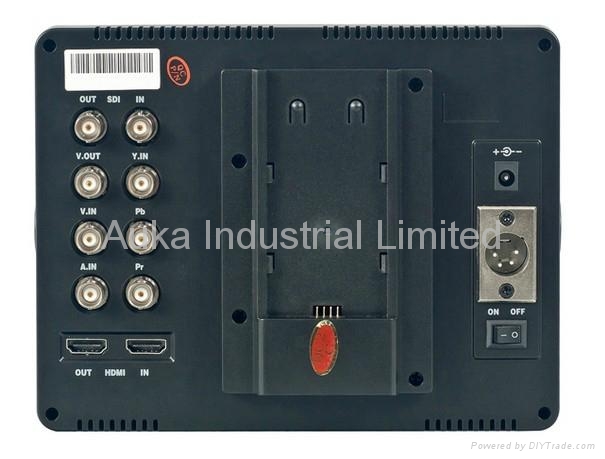

Input Signal: HDMI, YPbPr, AV, 3G-SDI (optional)
Current: 650mA
Standby Current: 50mA
Power Consumption: 7.8W
Size(LWD): 194.5× 150× 38.5mm
194.5× 150× 48.5mm (with cover closed)
194.5× 150× 158.5mm (with cover open)
Accessories:
1. Flexible Folding Sun Shade Cover: 1piece
2. Battery Plate (F970/QM91D): 2piece
3. DC Adapter: 1piece
4. HDMI A/C Cable: 1piece
5. Manual: 1copy
6. Battery Plate DU21 (optional): 1pieces
7. V-mount battery plate (optional): 1piece
8. Anton Bauer mount battery plate (optional): 1piece
9. Li-ion DV battery (optional): 1piece
10. Shoe Mount (for camera only)(optional): 1piece |
|
|
|
