A. 7 16: 9 inch LCD pro-photography SDI monitor
B. Signals: Hdmi, ypbpr, av and 3g/hd/sd sdi
C. Resolution: 1024x600 optional
D. Brightness: 450/cd
| Specification |
Main Menu Function: |
| Description: |
7" Pro-photography LCD HD Monitor |
Picture Mode |
User |
| Model: |
AL-679HSD |
AL-679 HSD600 |
| Resolution |
800x480 |
1024x600 |
Vivid |
| Brightness |
450cd/m² |
250cd/m² |
Standard |
| Contrast: |
500:1 |
700:1 |
Soft |
| Aspect Ratio: |
16:9 |
PIP |
PIP mode: |
Small |
| Backlight: |
LED |
Medium |
| Inputs: |
3G/HD/SD-SDI,HDMI,Component,Composite |
Large |
| Outputs: |
3G/HD/SD-SDI,Component,Composite |
PBP |
| Viewing Angle: |
75°/75°(L/R) 70°/75°(U/D) |
POP |
| Power Consumption: |
≤10W |
PIP Source (support signal list) |
SDI:AV.Component |
| Input Voltage: |
DC6V-14V±15% |
DVI:AV.Component |
| Work Temperature: |
-20ºC—60ºC |
HDMI:AV.Component |
| Store Temperature: |
-30ºC—70ºC |
AV:Component.SDI,DVI,HDMI |
| Unit Size: |
205L × 145W × 51H(mm) |
Component:AV.SDI,DVI,HDMI |
| Unit Weight: |
750g(include battery plate);650g (no plate) |
PIP Posistion (when PIP modes in S/M/L,this function can be adjusted) |
Right Up |
| SDI Support mode: |
Right Down |
| NO. |
Resolution |
Catalogue |
Left Up |
| 1 |
1080P@60HZ/59.94HZ |
3G-SDI |
Left Down |
| 2 |
1080P@50HZ |
3G-SDI |
PIP Swap |
| 3 |
1080I@60HZ/59.94HZ |
HD-SDI |
Check Field |
Mono |
| 4 |
1080I@50HZ |
HD-SDI |
|
Red |
| 5 |
1080P@30HZ/29.97HZ |
HD-SDI |
|
Green |
| 6 |
1080P@25HZ |
HD-SDI |
|
Blue |
| 7 |
1080P@24HZ |
HD-SDI |
|
Off |
| 8 |
720P@60HZ/59.94HZ |
HD-SDI |
Aspect Ratio |
Dot by Dot |
| 9 |
720P@50HZ |
HD-SDI |
Panorama |
| 10 |
720P@30HZ/29.97HZ |
HD-SDI |
Zoom 1 |
| 11 |
720P@25HZ |
HD-SDI |
Zoom 2 |
| 12 |
720P@24HZ/23.97HZ |
HD-SDI |
4:3 |
| 13 |
480I@60HZ/59.94HZ |
SD-SDI |
Full screen |
| 14 |
576I@50HZ |
SD-SDI |
Scan Mode |
Standard |
| 15 |
PAL |
SD-SDI |
Overscan |
| 16 |
NTSC |
SD-SDI |
Underscan |
| Character |
screen Marker |
Off |

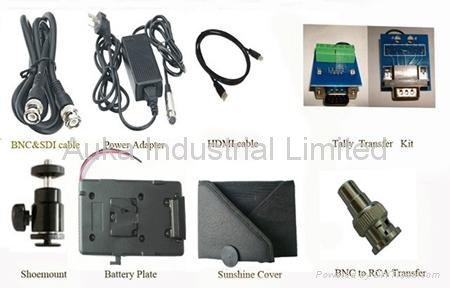

| Power Ways: |
DC XLR Power adapter |
96% |
| Battery |
93% |
| Power from DV device |
90% |
| Custimzation: |
customize BNC connector to RCA connector |
|
|
85% |
